About ATOMSTACK :
100% laser engraving machine manufacturer located in China, welcome to visit our factory whenever you like! It is important to know that our factory do not just sell "boxes", but we offer support and advice to get the best results with the laser engraver you choose. We are always available to provide the spare parts you need with your laser engraving machine .You could reply on us for the consistent quality and service!
About Tax:
we do not including any tax and duty!
About customs charging fee . nobody can control , every country customs has different Import and export tariff system.
About Maintenance:
All machines have 13 months warranty against manufacturing defects,buy it with confidence. If any breakdown, send us the working video, we shall offer solutions for you. If the item was damaged during transportation or cannot be used normally, pls do not hesitate to contact us and provide us the photos and working video, we will give a partial refund or send the spare parts for free.
✅Specifications:
1. Product Model: ATOMSTACK A12 ultra
2. Engraving Size: 370*310mm
3. Engravable/Cuttable Materials:
◼Engraving Materials: Wood, bamboo, cardboard, plastic, leather, PCB board, oxidized aluminum, non-reflective electroplating and painted metal, 304 mirror-finish stainless steel, glass, ceramics, cotton, slate.
◼Cutting Materials: Cardboard, non-woven fabric, wood, plywood, acrylic (transparent requires coating in black), certain thin plastic sheets, sponge, aluminum, and stainless steel, etc.
6. Total Power: 50W
7. Laser Output Power: 12W
8. Laser Wavelength: 455±5nm
9. Engraving Accuracy: 0.02mm
10. Focusing Method: Fixed-focus laser, no manual focusing required

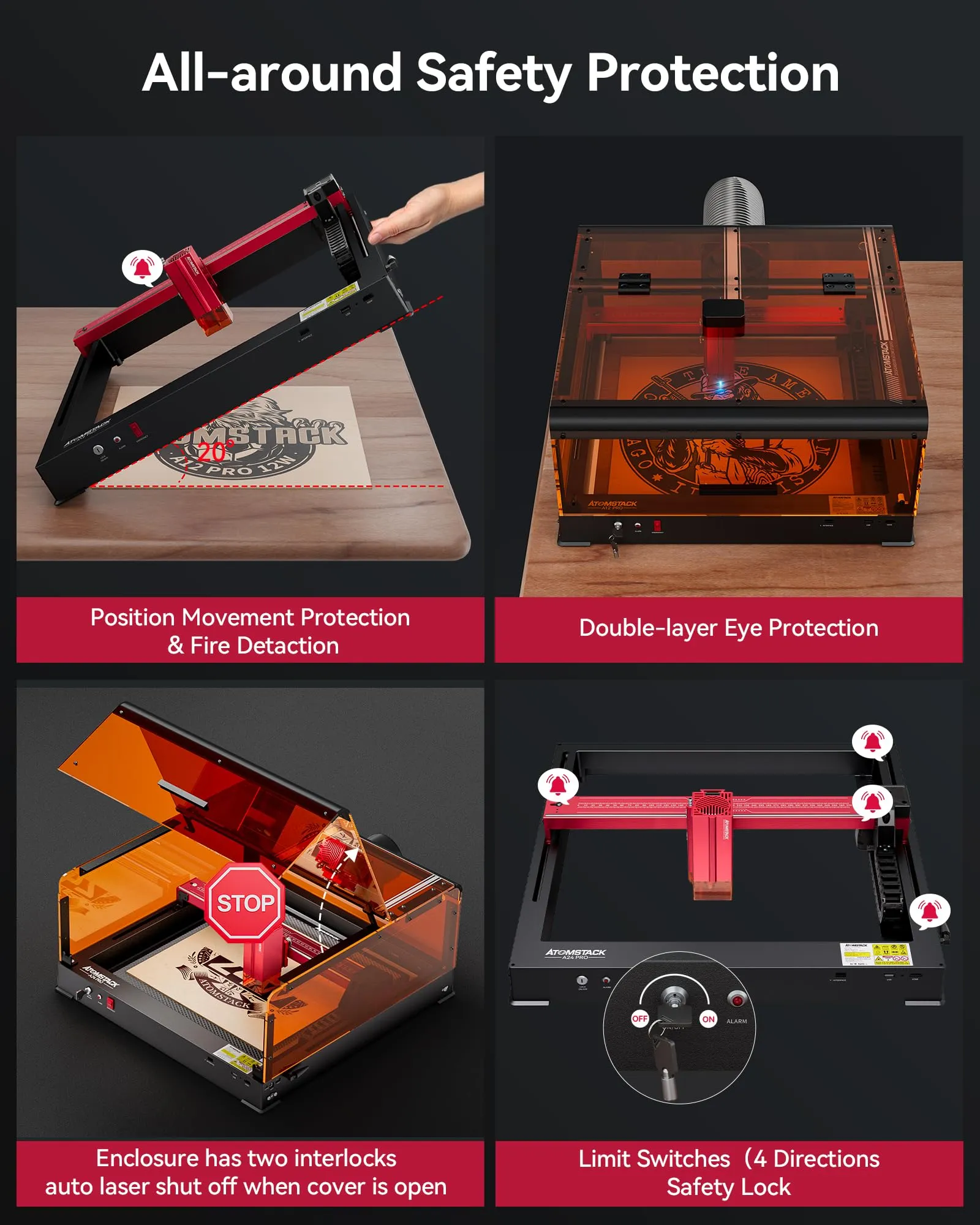

11. Laser Protection Cover: The laser comes with a protective cover, ensuring user eye safety without the need for additional protective eyewear. It also prevents pets from chasing the laser point.
12. Operating Software: LaserGRBL, LightBurn, compatible with Win XP/Win 7/Win 8/XP/Win 10 systems
13. Supported File Formats: NC, BMP, JPG, PNG, DXF
14. Data Transfer Method: USB connection
15. Power Supply: International standard power input: 100-240V AC, 50/60HZ, Output: 24V 5A
16. Certifications: CE, FCC, RoHS, FDA, PSE
Product Description :

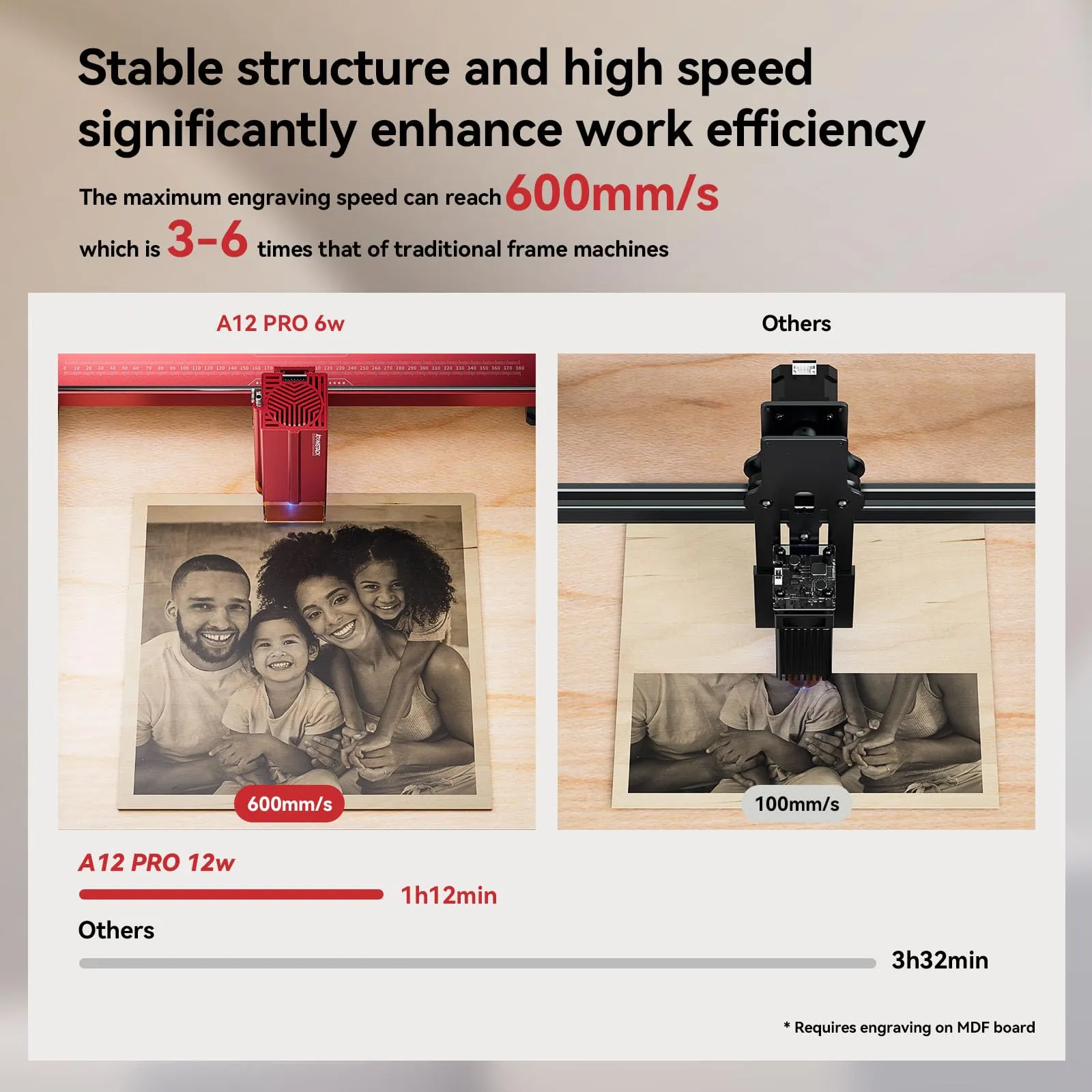

- 12 W high power and high speed: ATOMSTACK A12 Pro uses the most stable 12 W high-performance laser module. It features a fixed focus design for fast and precise focusing in 10 seconds. The maximum engraving speed of the ATOMSTACK A12 Pro is 600 mm/s, which is 3-6 times higher than conventional frame devices.

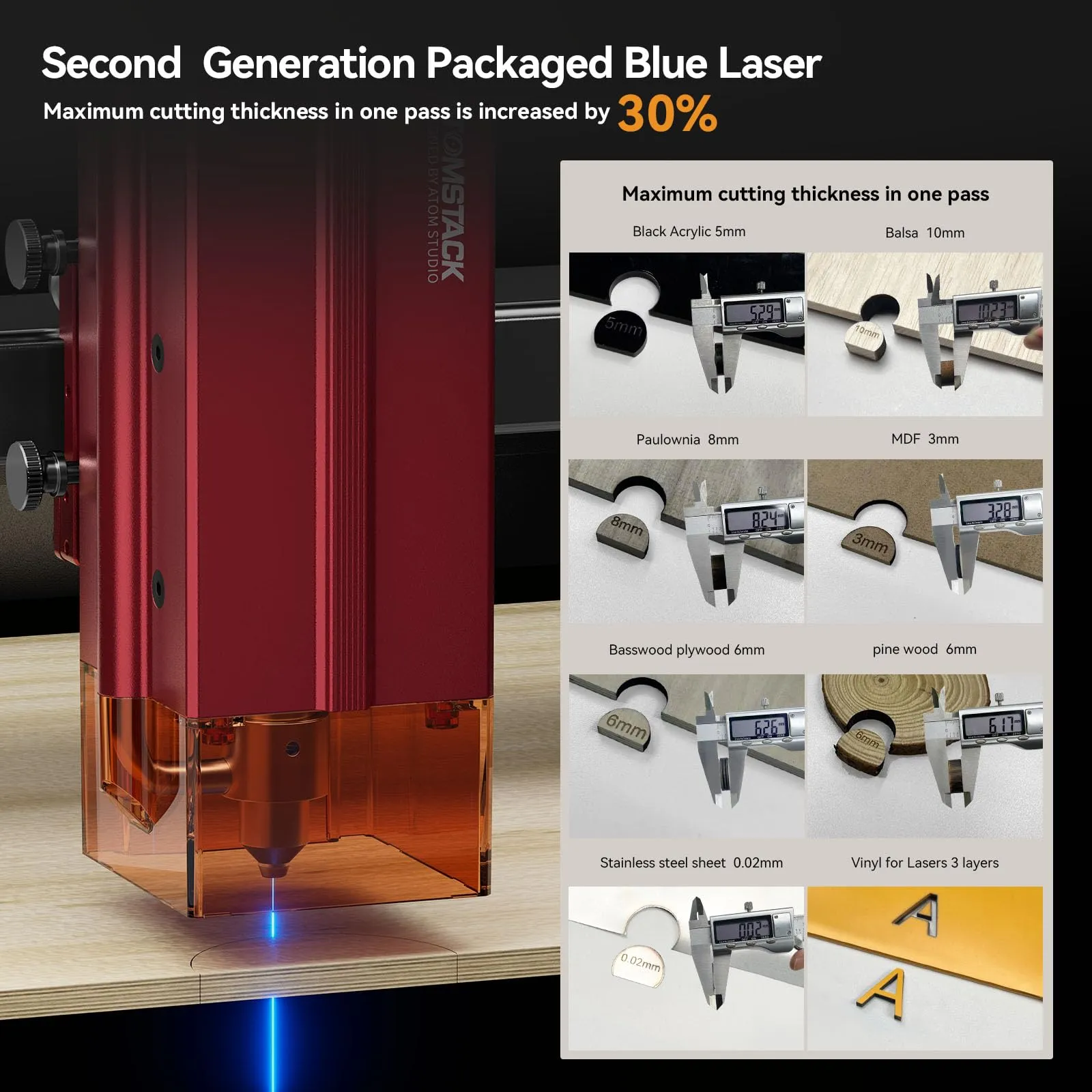

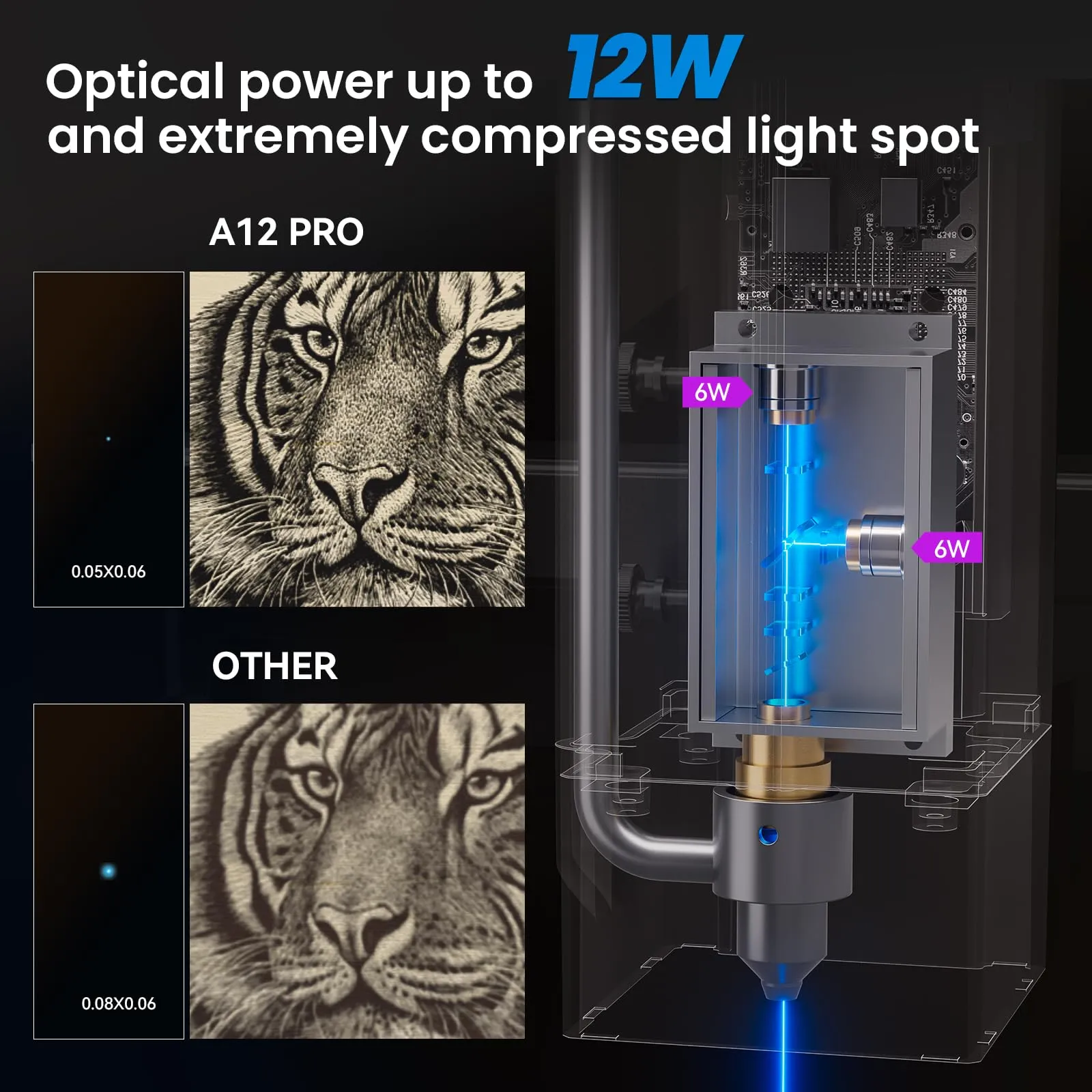

- Laser beam compression technology: ATOMSTACK A12 Pro laser uses second generation laser beam compression technology to further compress the laser beam and significantly improve cutting ability. Compared to machines of the same class, the cutting ability is increased by 30%. The ultra-fine laser focus range has been reduced to 0.05 x 0.06 mm.

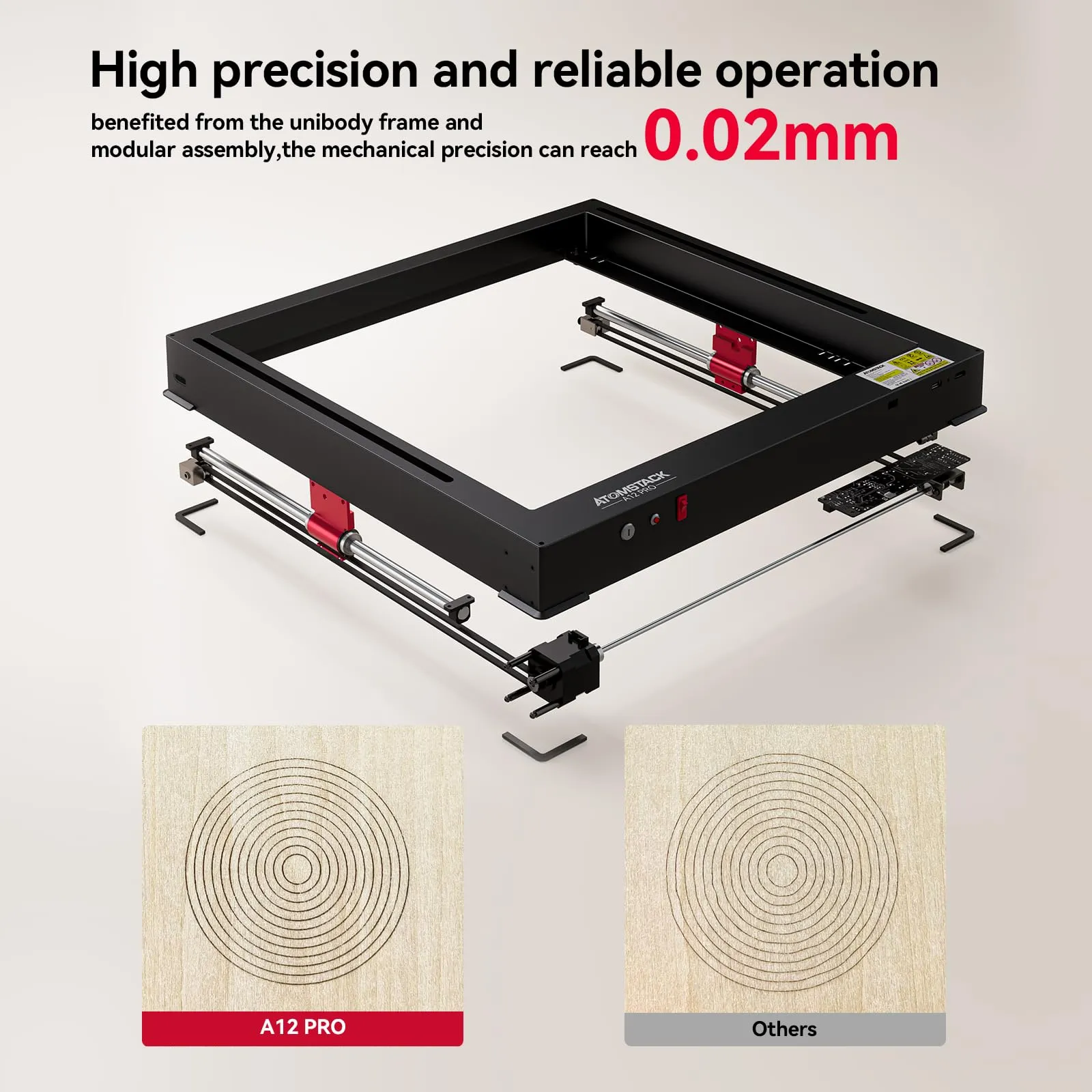

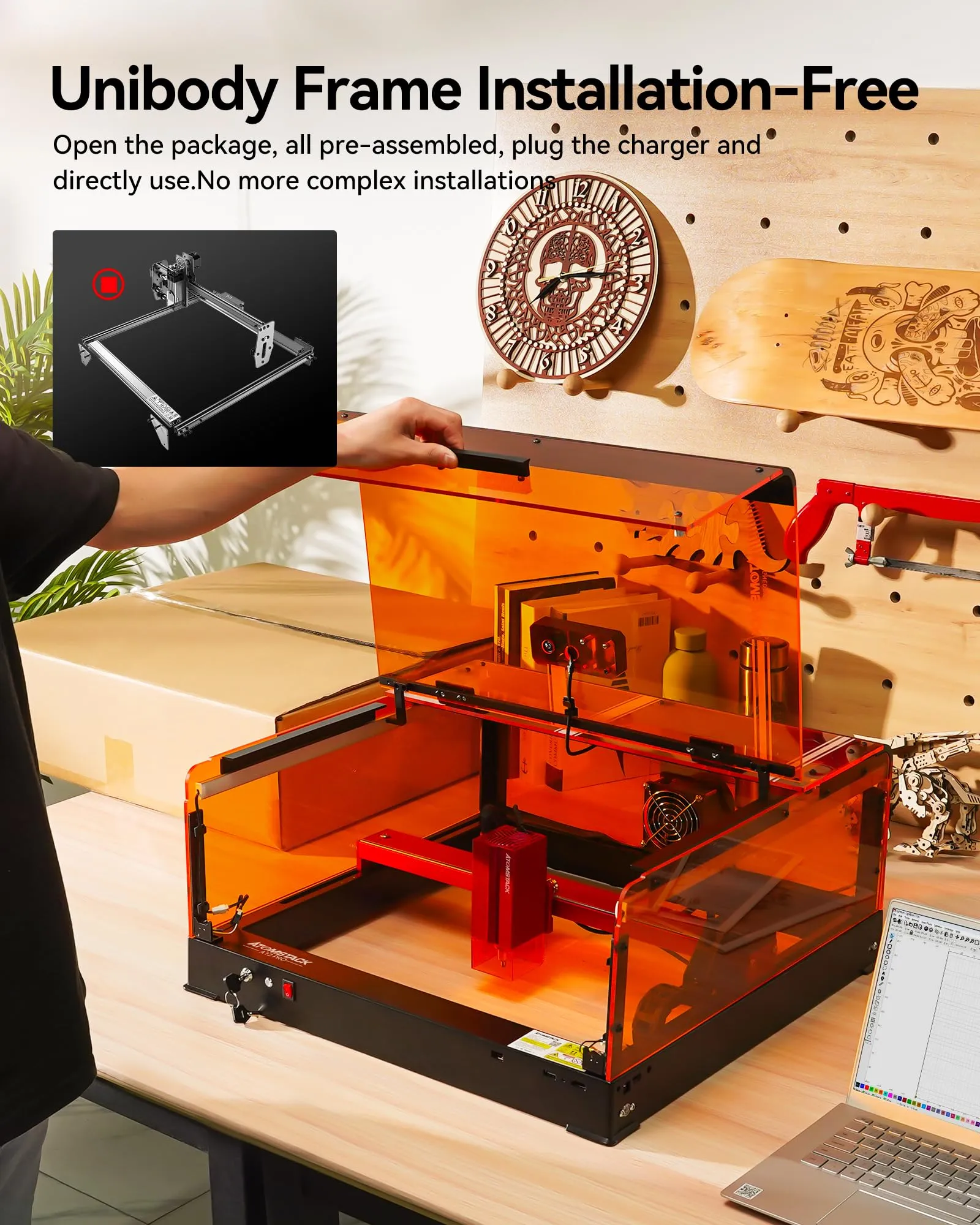

- Sturdy structure, plug and play: the frame of the ATOMSTACK A12 Pro is made of aluminium alloy. The substructure of the A12 Pro is integrally shaped and the X-axis is equipped with a double axle guide rail structure to ensure minimal work fluttering and ensure that the machine does not vibrate when operating at high speed of 500 mm/s.
- Chain design and clog-free laser module: To improve the structural stability of the machine, the A12 Pro uses a chain wire bundling solution to ensure smooth operation of the wiring harness without tangles. The new A12 laser comes with a tool-free focus module and an integrated air support system that eliminates cable interference for a sleek and minimalist design.

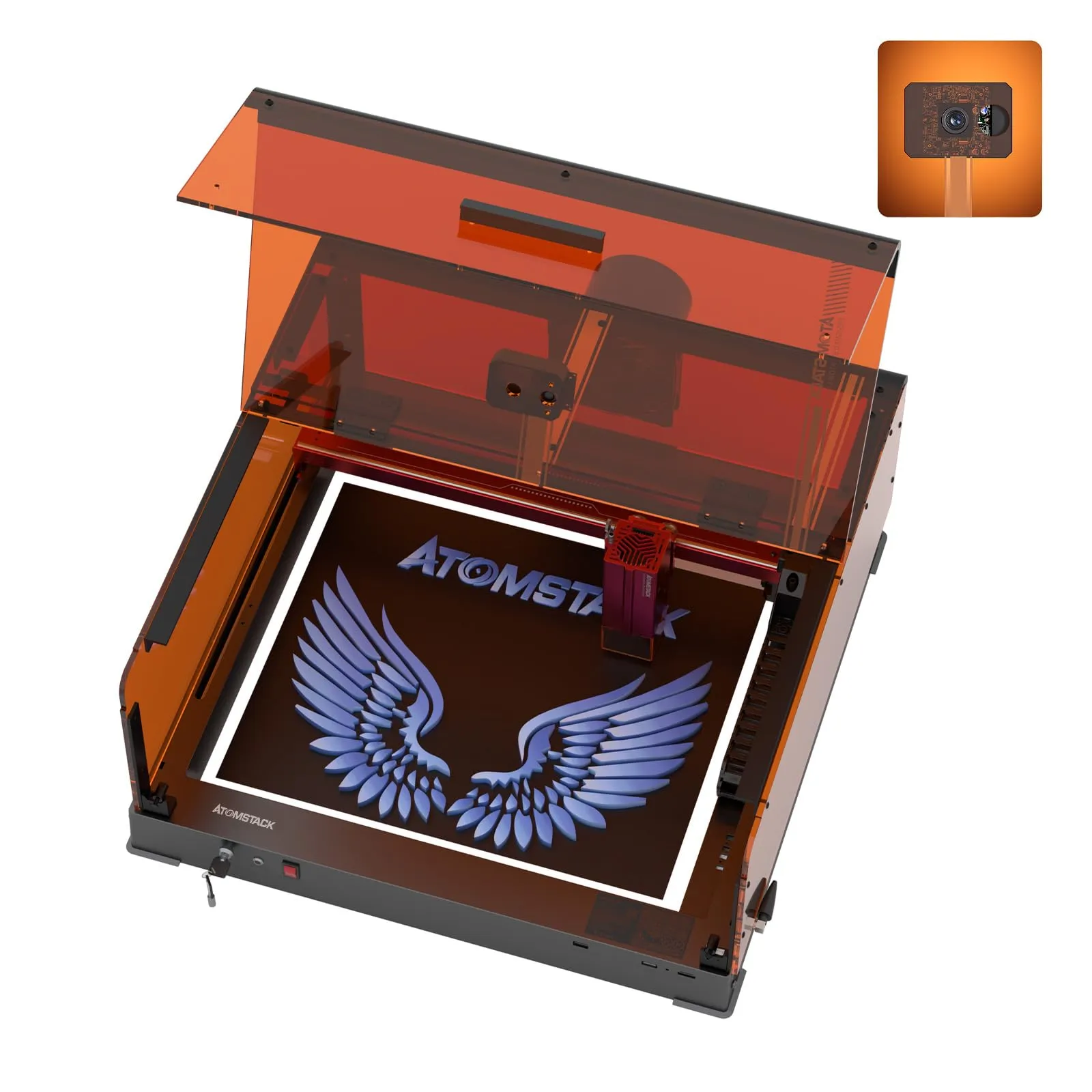

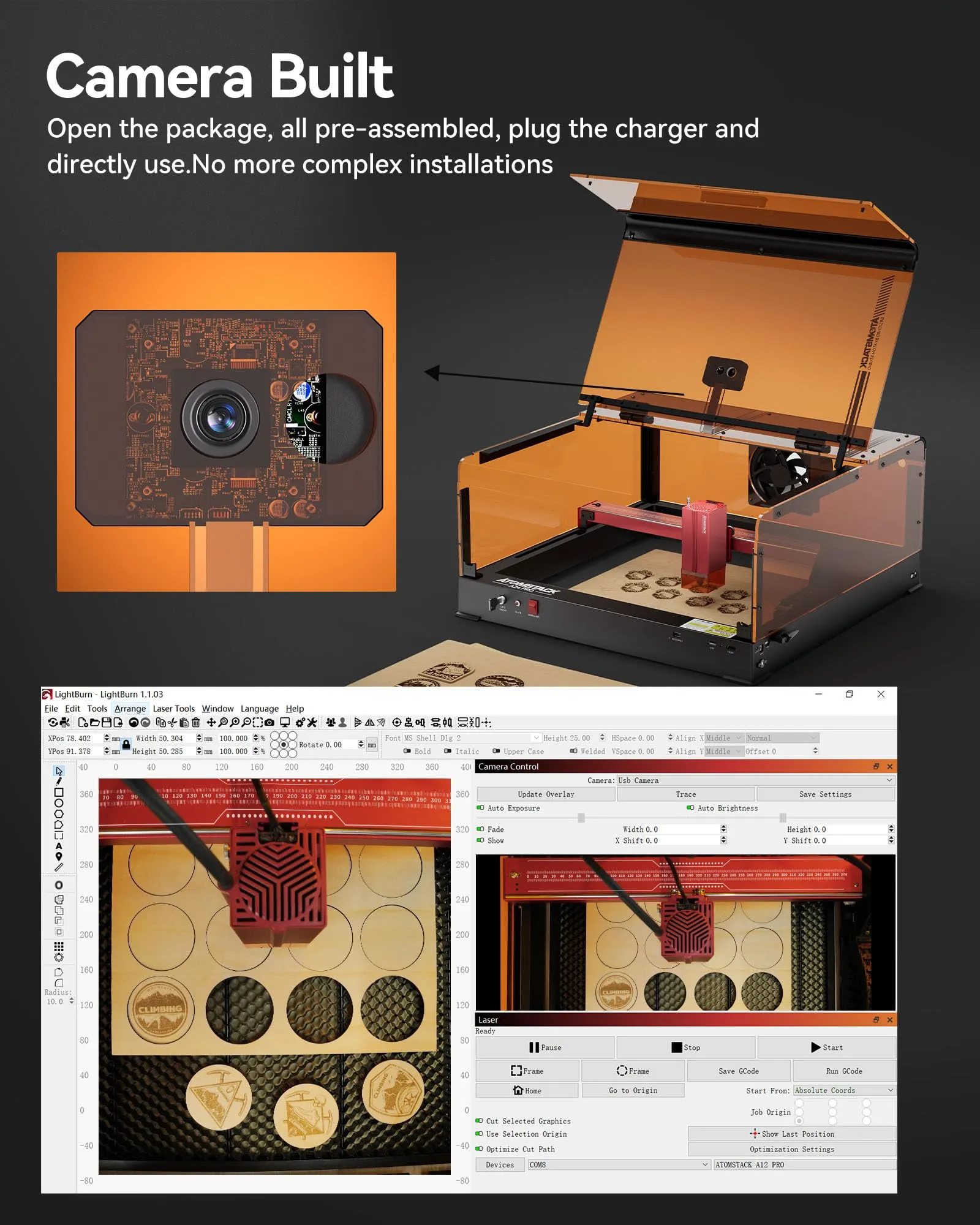

- Equipped with B3 laser housing: The entire body of the ATOMSTACK B3 is made of acrylic, allows you to observe the working status of the machine and protect it from strong light. The built-in camera and LED lighting at the top allow precise positioning and machine control.
