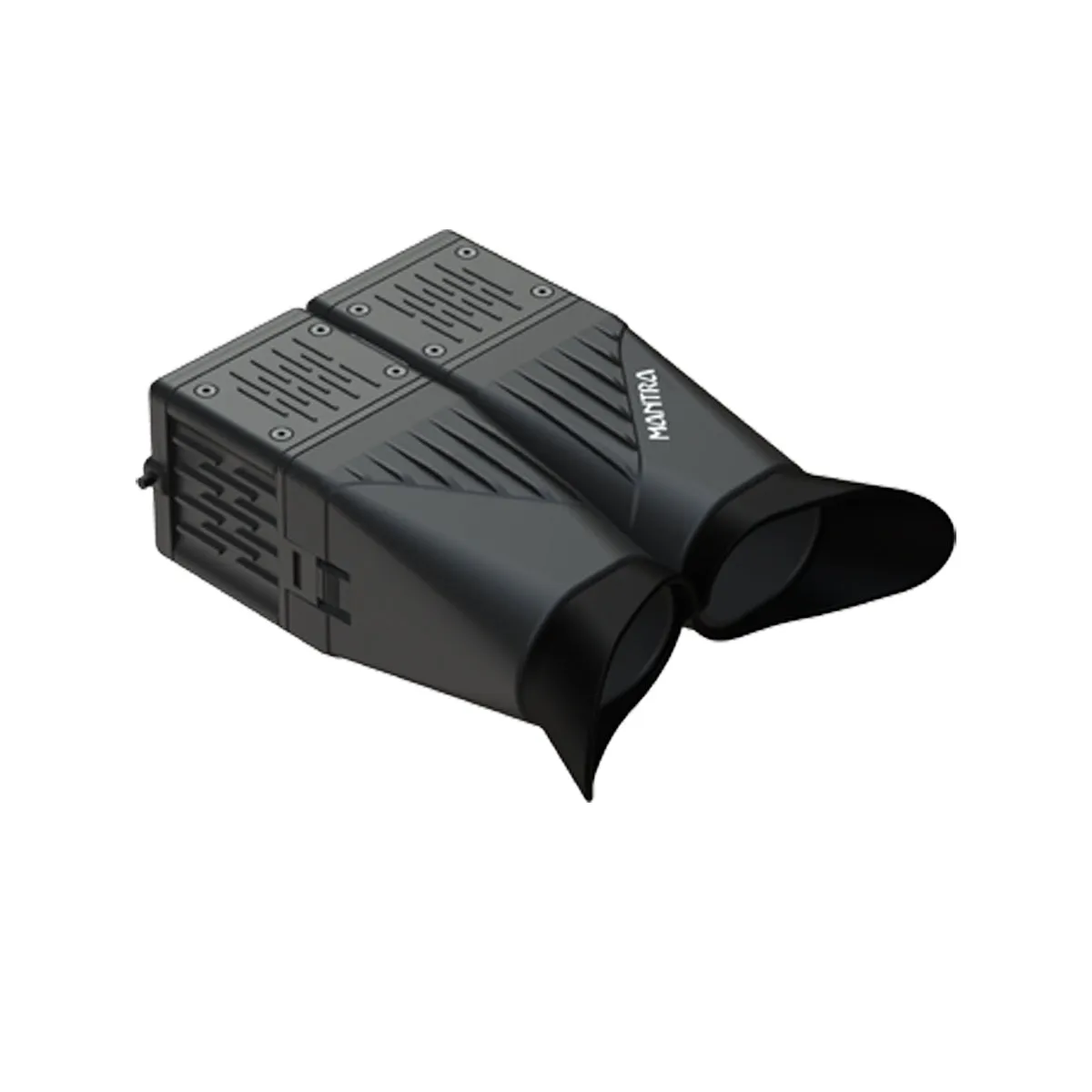

Mantra’s MATISX is an adjustable interpupillary & easy-to-operate dual-iris scanner device used to capture the double iris images of an individual simultaneously. Designed with an advanced biometric technology, MATISX is the next-generation iris scanner device compliant with ANSI NIST and ISO image interchange format. The innovative dual iris scanner MATISX offers ease of convenience, high reliability and long-lasting durability. The dual iris sensor presents multiple compelling functionalities such as auto capture feature for quick & effortless dual iris recognition, adjustable interpupillary distance range, immunity to ambient lighting and much more.
MATISX is a rugged, portable and easy-to-use dual-iris capture device that can simultaneously capture both irises with higher accuracy and greater speed. The innovative dual iris scanner is packed with compelling features that make the device suitable for diverse biometric enrollment and identification applications.
Benefits
- Portable
- Robust
- Easy-to-operate
- Durable
- Highly Reliable
Features
- Adjustable Inter Pupillary Distance
- Unaffected by Ambient Lighting
- Dust & Water Resistant
- Compliance to EYE Safety Standards
- Compliant with ANSI NIST & ISO Image Interchange Format
- Supports Linux Operating System
- Supports Windows Operating Systems
Tech Specs
| Simultaneous Capture | Dual IRIS Capture |
| IRIS Diameter | > 210 Pixel |
| Spatial Resolution | > 60 % @ 4.0 LP/mm |
| Pixel Resolution | > 20 Pixel/mm |
| Image Margins | Left & Right >= 0.5x IRIS Diameter, Top & Bottom >= 0.25x IRIS Diameter |
| Pixel Depth | < 8 Bits/Pixel (256 Gray Level) |
| Imaging Wavelength | 700 - 900 nm |
| Frame Rate | >=10 Frames/Sec |
| Scan Type | Progressive |
| Sensor SNR | > 36 dB |
| Capture mode | Auto Capture with Built-in Quality Check |
| Illumination | Near Infra Red (NIR) |
| Capture Distance | > 100mm from the Front of Camera mirror |
| Capture Volume (WxHxD) | 30 x 22.5 x15 mm |
| Exposure Time | < 33ms |
| Interface | USB2.0 High Speed (USB-IF Certified) |
| Operating Voltage | 5V /- 5% |
| Current Consumption | Operating :- < 350 mA (Max) , Stand By :- < 160 mA (Max) |
| Operating Temperature | 0 to 50 °C |
| Operating Humidity | 10-90% RH, Non-Condensing) |
| ESD Protection | /-4kV (Contact Discharge), /-8kV (Air Discharge) |
| Device Dimension | 185 x 145 x 62 mm |
| Device Weight | 0.41Kg |
| Operating System | Windows x86 and x64, Linux |
| Biometric Data Interchange Format | ISO 19794-6 for IRIS Image, ISO 29794-6 for image quality |
| EMI / EMC Compliance | CE & FCC Part 15B class B |
| Environmental, Health and Safety | ROHS (Certifications are Under Process) |
| Safety | Exempt Group per IEC 62471:2006-07, IS13252 (Part 1) (Certifications are Under Process) |
| Ingress Protection Rating | IP65 (Certifications are Under Process) |
| Device Driver | WHQL Certified |
